SpringBoot_(2)_Securing a Web Application

jω 2020. 2. 27. 10:49

https://spring.io/guides/gs/securing-web/ 의 예제를 따라해 보면서

SpringBoot 에서 Securing a Web Application을 만들어본다.



pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.4.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.goodold</groupId>
	<artifactId>goodoldsts_ver2</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>goodoldsts_ver2</name>
	<description>goodold project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-mail</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-mustache</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web-services</artifactId>
		</dependency>


<!--
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jdbc</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

 		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>2.1.1</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>

-->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
			<scope>runtime</scope>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-configuration-processor</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework.restdocs</groupId>
			<artifactId>spring-restdocs-mockmvc</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.asciidoctor</groupId>
				<artifactId>asciidoctor-maven-plugin</artifactId>
				<version>1.5.8</version>
				<executions>
					<execution>
						<id>generate-docs</id>
						<phase>prepare-package</phase>
						<goals>
							<goal>process-asciidoc</goal>
						</goals>
						<configuration>
							<backend>html</backend>
							<doctype>book</doctype>
						</configuration>
					</execution>
				</executions>
				<dependencies>
					<dependency>
						<groupId>org.springframework.restdocs</groupId>
						<artifactId>spring-restdocs-asciidoctor</artifactId>
						<version>${spring-restdocs.version}</version>
					</dependency>
				</dependencies>
			</plugin>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

중간에 DB와 관련된 부분은 추후 사용할 것이기에 주석처리 하였다.

주석을 하지 않으면 에러가 뜰 것이다.

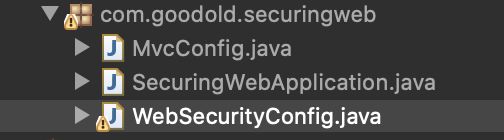

securingweb package에 3개의 파일을 넣을 것이다.

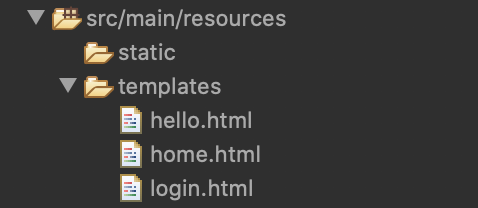

src/main/resources/templates 안에도 3개의 html 파일을 넣을 것이다. 이때 jsp 파일로 하면 에러가 뜬다.



MvcConfig.java

package com.goodold.securingweb;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class MvcConfig implements WebMvcConfigurer {

	public void addViewControllers(ViewControllerRegistry registry) {
		registry.addViewController("/").setViewName("home");
		registry.addViewController("/home").setViewName("home");
		registry.addViewController("/hello").setViewName("hello");
		registry.addViewController("/login").setViewName("login");
	}

}

주소에 따른 리다이렉션을 지정해 준다.

http://localhost:8080/

http://localhost:8080/home

위 두개의 주소는 home.html 로 리다이렉션이 될 것이다.



package com.goodold.securingweb;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;

@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
	@Override
	protected void configure(HttpSecurity http) throws Exception {
		http.authorizeRequests().antMatchers("/", "/home").permitAll().anyRequest().authenticated().and().formLogin()
				.loginPage("/login").permitAll().and().logout().permitAll();
	}

	@Bean
	@Override
	public UserDetailsService userDetailsService() {
		UserDetails user = User.withDefaultPasswordEncoder().username("user").password("password").roles("USER")
				.build();

		return new InMemoryUserDetailsManager(user);
	}
}

위 예제를 넣으면 withDefaultPasswordEncoder() 에 점선이 들어 갈 것이다.

이는 password 에 어떠한 인코딩 없이 plain text를 받기 때문이다. 추후 인코딩을 통하여 보안을 강화해주면 사라지게 된다.



도움이 될 만한 사이트 :

https://stackoverflow.com/questions/49847791/java-spring-security-user-withdefaultpasswordencoder-is-deprecated/49847852



Java Spring Security - User.withDefaultPasswordEncoder() is deprecated?

I am very new to java spring security, and was following the Spring.io tutorial guide. As part of this, I edited the WebSecurityConfig class as required: @Configuration @EnableWebSecurity public c...

stackoverflow.com



run 을 위한 @SpringBootApplication .java

package com.goodold.securingweb;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SecuringWebApplication {

	public static void main(String[] args) throws Throwable {
		SpringApplication.run(SecuringWebApplication.class, args);
	}

}

기존에 생성된 application.java 로 돌려도 문제없다.





hello.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:th="https://www.thymeleaf.org"
	xmlns:sec="https://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
<head>
<title>Hello World!</title>
</head>
<body>
	<h1 th:inline="text">Hello [[${#httpServletRequest.remoteUser}]]!</h1>
	<form th:action="@{/logout}" method="post">
		<input type="submit" value="Sign Out" />
	</form>
</body>
</html>



home.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:th="https://www.thymeleaf.org"
	xmlns:sec="https://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
<head>
<meta charset="UTF-8">
<title>Spring Security Example</title>
</head>
<body>
	<h1>Welcome!</h1>

	<p>
		Click <a th:href="@{/hello}">here</a> to see a greeting.
	</p>
</body>
</html>



login.html

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:th="https://www.thymeleaf.org"
	xmlns:sec="https://www.thymeleaf.org/thymeleaf-extras-springsecurity3">
<head>
<title>Spring Security Example</title>
</head>
<body>
	<div th:if="${param.error}">Invalid username and password.</div>
	<div th:if="${param.logout}">You have been logged out.</div>
	<form th:action="@{/login}" method="post">
		<div>
			<label> User Name : <input type="text" name="username" />
			</label>
		</div>
		<div>
			<label> Password: <input type="password" name="password" />
			</label>
		</div>
		<div>
			<input type="submit" value="Sign In" />
		</div>
	</form>
</body>
</html>





이제 모두 저장을 하고 Run as - java Application을 해보자

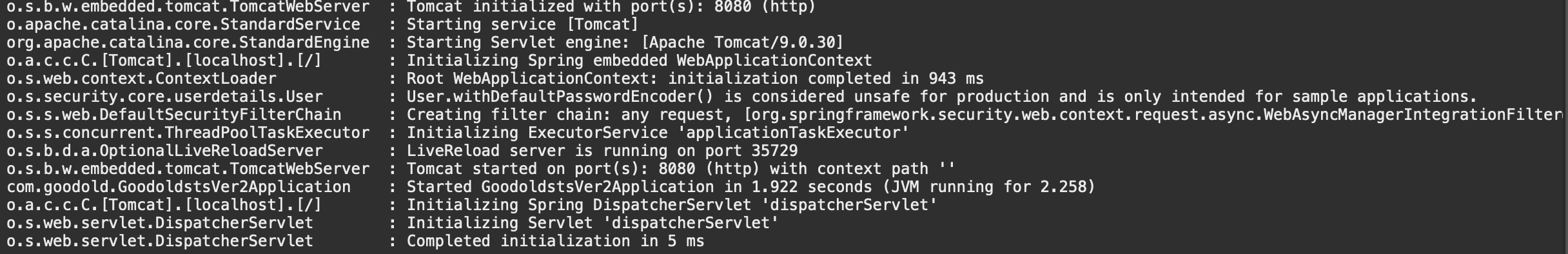

console

 port 번호를 확인하고 접속한다.

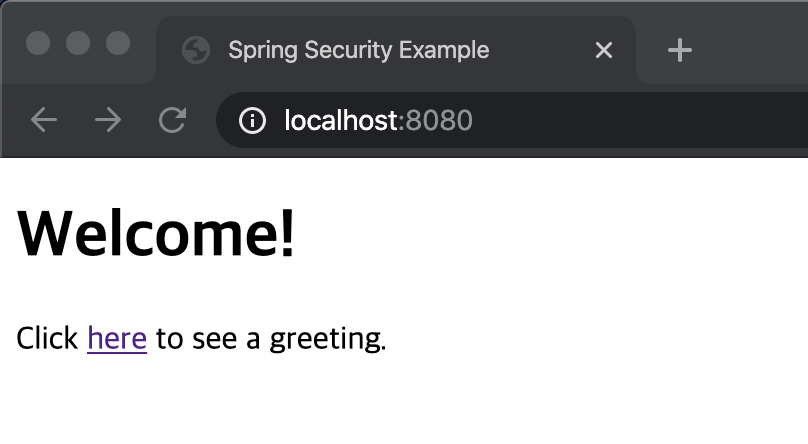

/ 로 들어갈 경우

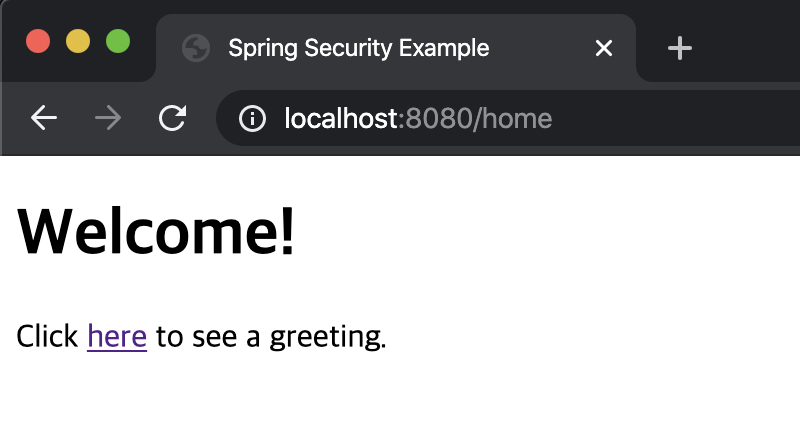

/home 으로 들어간 경우





here 버튼을 누르고 들어가면 login.html로 이어진다.

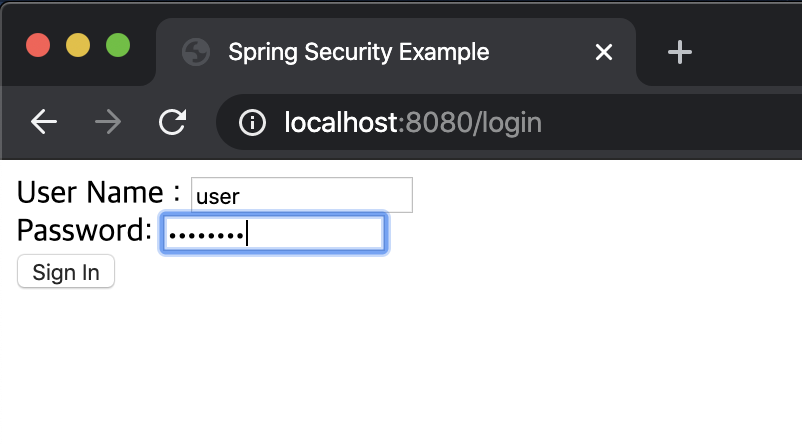

user , password 를 입력하였다.

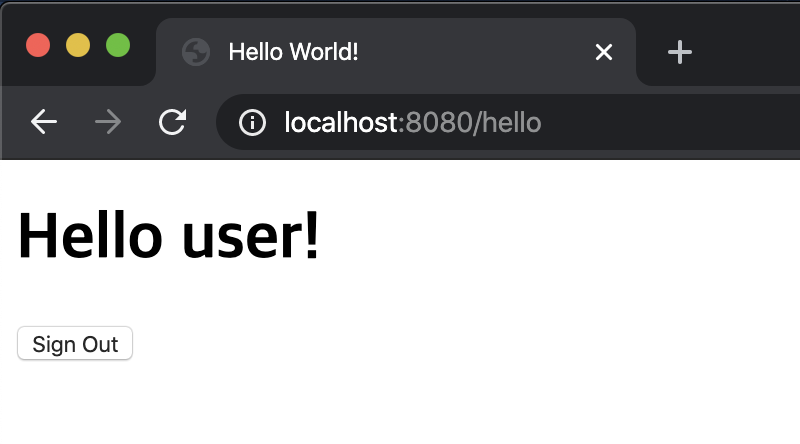

아이디와 비밀번호가 맞으면 hello.html로 들어간다.

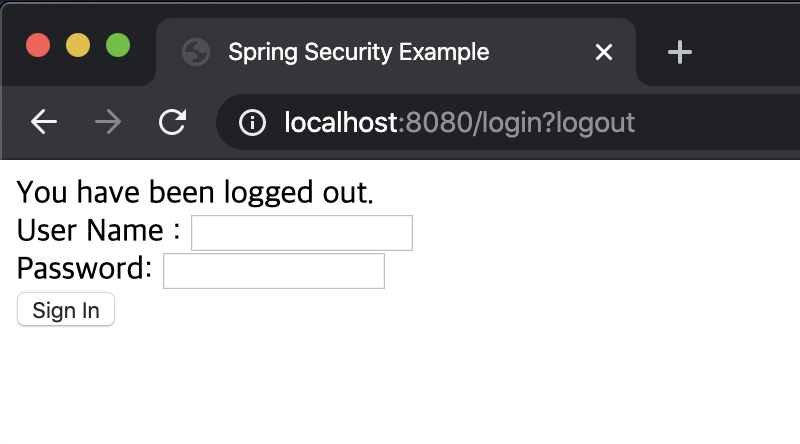

logout을 누르면 logout으로 넘어가게 된다.

/ or /home 으로 들어와서 권한이 있는지 검사하는 WebSecurityConfig 를 통과하게 되며

권한이 없기에 hello.html을 가지 못하고 login.html로 리다이렉트 된다.



Thymeleaf 코드를 이해하는데 도움이 되는 참고 사이트

https://www.thymeleaf.org/doc/tutorials/3.0/usingthymeleaf.html



Tutorial: Using Thymeleaf

1 Introducing Thymeleaf 1.1 What is Thymeleaf? Thymeleaf is a modern server-side Java template engine for both web and standalone environments, capable of processing HTML, XML, JavaScript, CSS and even plain text. The main goal of Thymeleaf is to provide a

www.thymeleaf.org

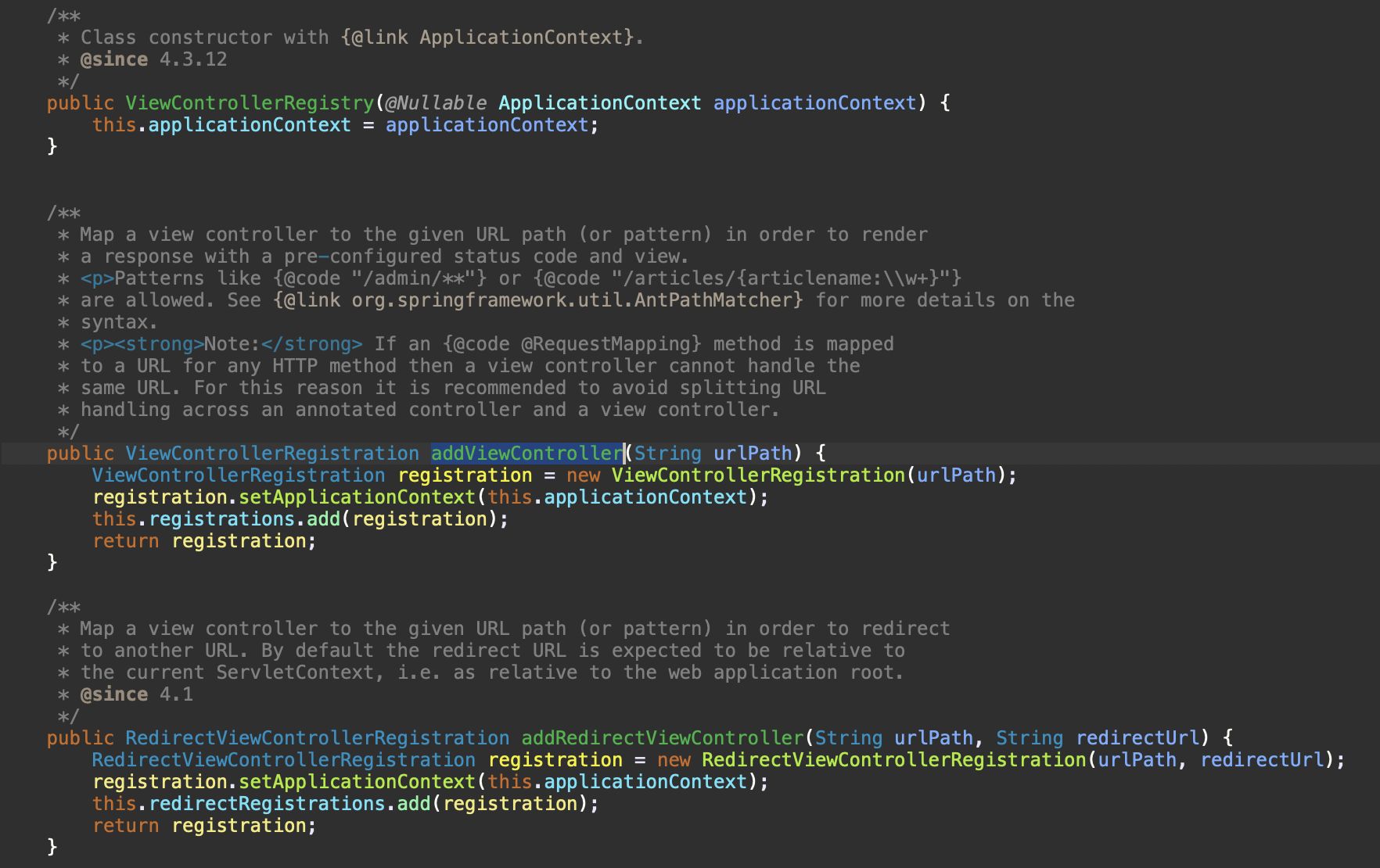

STS 에서 어떤 함수가 무엇을 뜻하는지 모르겠으면 F3을 눌러주면 된다.

registry.addViewController("/").setViewName("home");

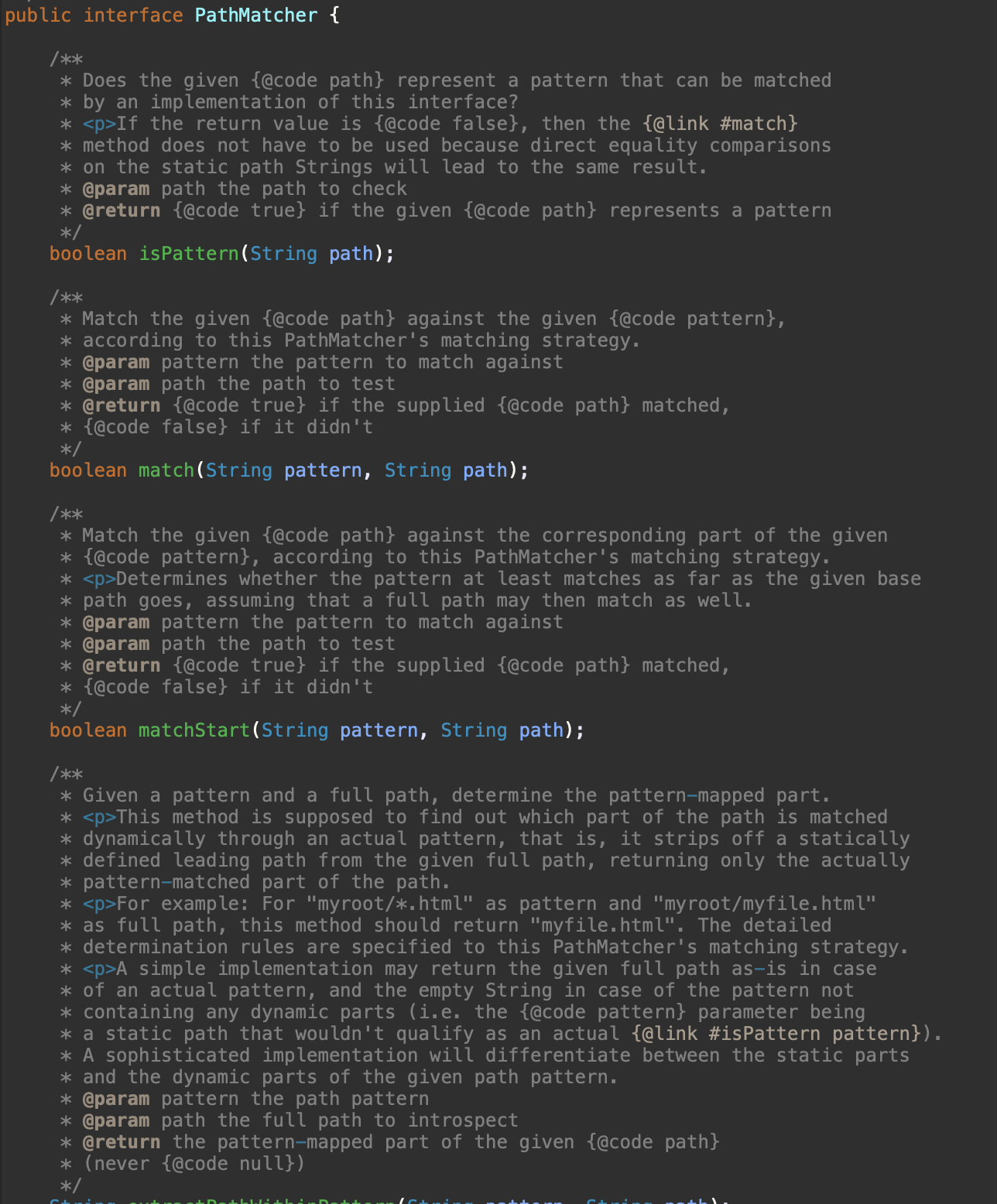

PathMachConfigurer 가 궁금했다.



이렇게 생긴 인터페이스였구나~ 하면 된다.
